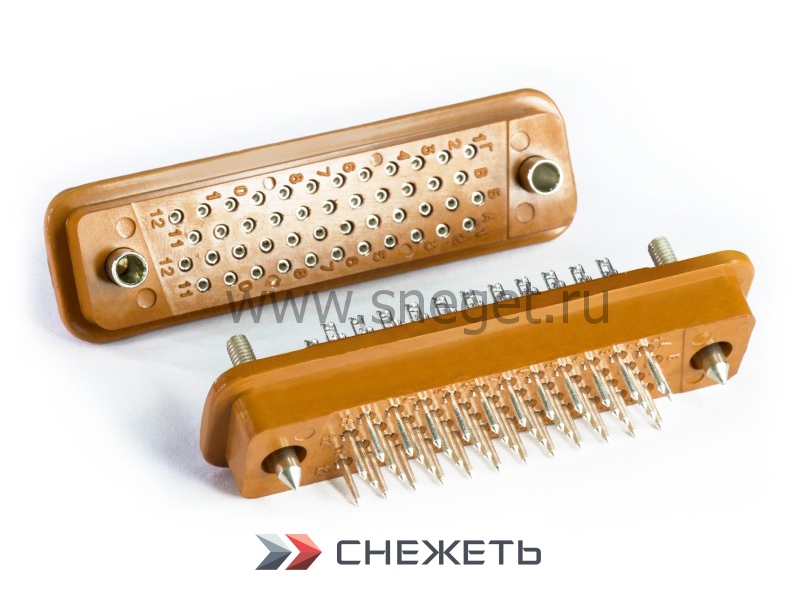

The ГРПМШ2-46ШПл2-В is a rectangular, low-frequency connector with 46 pins, belonging to the ГРПМШ2 series . It is designed for connecting printed circuit boards with three-dimensional mounting and printed circuit boards with each other .

Key features and specifications:

• Designation The connector is a plug (вилка) .

• Contacts The connector has 46 plug contacts (штыревой) . The contacts are made of brass with a silver (Ag) coating .

• Operating conditions The connector is designed for operation in electrical circuits of direct, alternating current (frequency up to 3 MHz) and pulsed currents with voltage up to 250 V (amplitude value) and current up to 3 A .

• Electrical characteristics The contact resistance is no more than 5 m?, insulation resistance is 5000 M?, and electric strength of insulation is 1200 V .

• Environmental The connector is designed for all-climatic performance (В) . It can operate in a temperature range from -60 to +85°C, withstanding relative humidity of 98% at a temperature of +35°С .

• Mechanical characteristics The connector can withstand sinusoidal vibration in the frequency range of 1-2500 Hz with an acceleration amplitude of 10 g .

• Durability The connector has a resource of 1000 mating-unmating cycles . The minimum operating time is 5,000 hours .

• Materials The connector has a carbolite housing .

• Mounting The connector has floating contacts .

• Standards The connector complies with НЩ0.364.034ТУ standards .

• Dimensions and weight The connector has a mass of 24.2 g .

• Intended use The con
